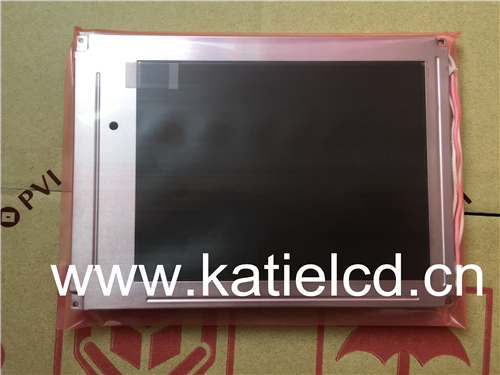

Main parameters of Yuantai LCD module PD064VT5:
Manufacturer: Yuan Tai (PVI) Model: PD064VT5
Diagonal size: 6.4 inch type: a-Si TFT-LCD, LCD module
Resolution: 640(RGB)×480 VGA pixel arrangement: RGB vertical bar
Display area: 129.6(horizontal)×97.44 (vertical) mm Appearance size: 175.4 (horizontal) × 126.9 (vertical) mm
Opening area: 134.8 (horizontal) × 101.8 (vertical) mm surface treatment: matte
Display brightness: 400 cd/m² (Typ.) Contrast: 400:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock Response time: 15/25 (Typ.)(Tr/Td) ms
Viewing angle: 50/50/15/35 (Typ.) (CR≥10) Display mode: TN, normally white display, transmissive
Support color: 262K light source type: CCFL[2 pcs], 50K hours, no driver
Touch technology: No touch Application products: Industrial and subway gate display

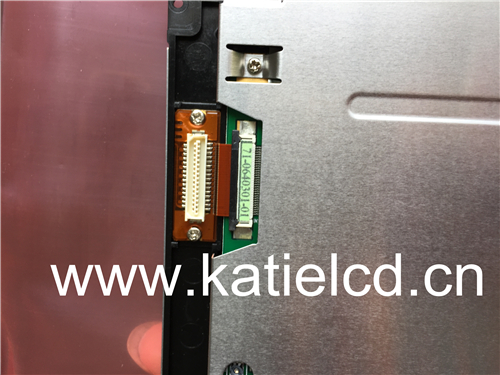

Voltage supply: 5.0V (Typ.)(VCC) Interface type: 31 pins TTL connector
Operating temperature: -20 ~ 70 °C Storage temperature: -30 ~ 80 °C
Packing feature: 20 pcs/carton weight: 340±10g/pcs
Packing box size: 530×295×230 ??mm (L×W×H)
