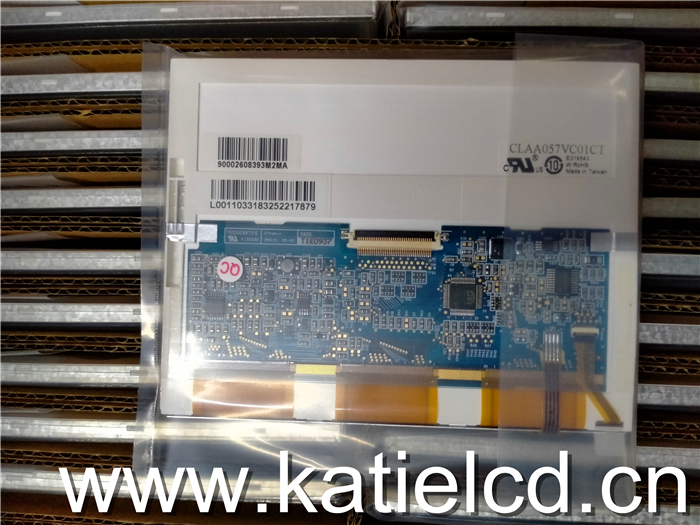

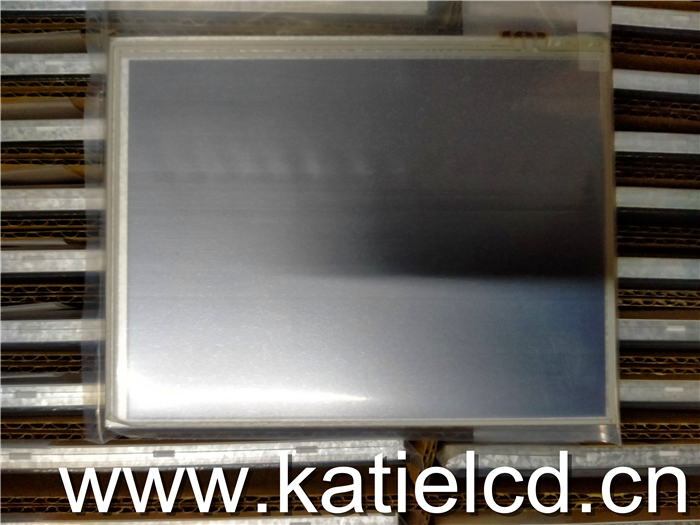

Manufacturer:(CPT) Model Number:CLAA057VC01CT
Diagonal size:5.7inch Type:a-Si TFT-LCD,LCD module
Resolution:640(RGB)×480VGA,139PPI Pixel arrangement:RGB vertical strip
Display area:116.16(hor)×87.12(ver)mm Appearance size:127(hor)×100(ver)×8.15(thi)mm
Opening area:118.56(hor)×89.52(ver)mm Surface treatment: matte, Hard coating (3H)
Display brightness:180 cd/m²(Typ.) Contrast:300:1 (Typ.) (transmission)
Recommended viewing angle:6 o'clock Response time:30 (Typ.)(Tr+Td) ms
Viewing angle:70/70/40/60(Typ.)(CR≥10) Display mode:TN,normally white display,transmissive
Support color:262K,50% NTSC Light source type:WLED,30K hours,with LED driver
Weight:135g(Typ.) Application products:industrial and medical equipment
Frame rate:60Hz Touch technology: 4-wire resistive touch screen
Interface type:40pinsTTL(1ch),terminal voltage:supply 3.3V (Typ.) (VCC)
Working temperature:-30 ~ 85 °C Storage temperature:-40 ~ 95 °C
(hor=horizontal,ver=vertical)
