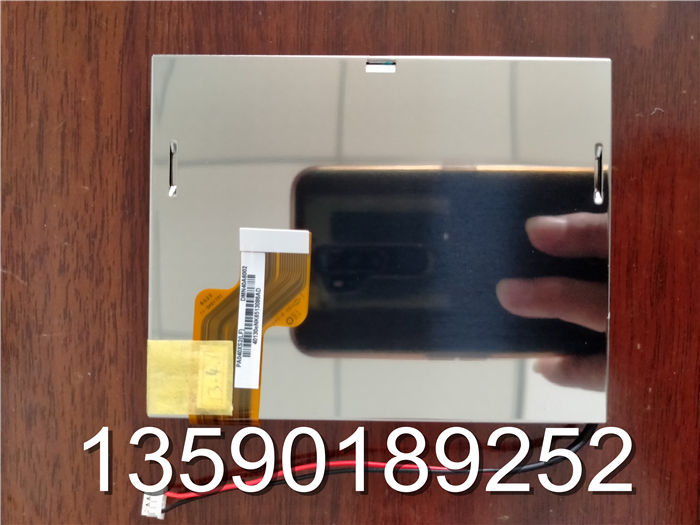

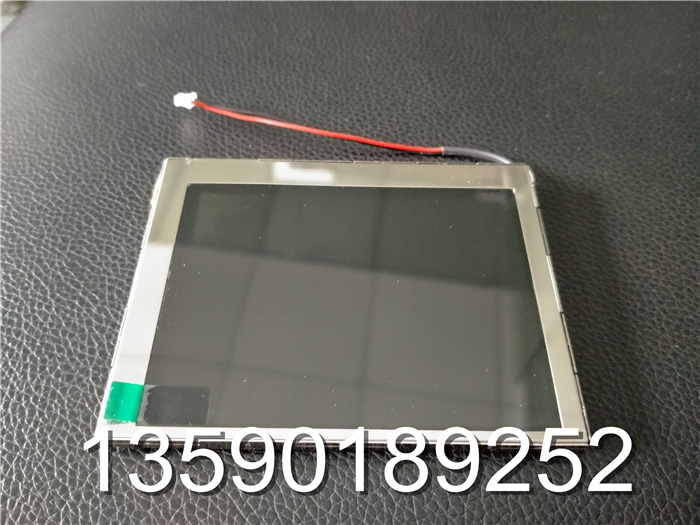

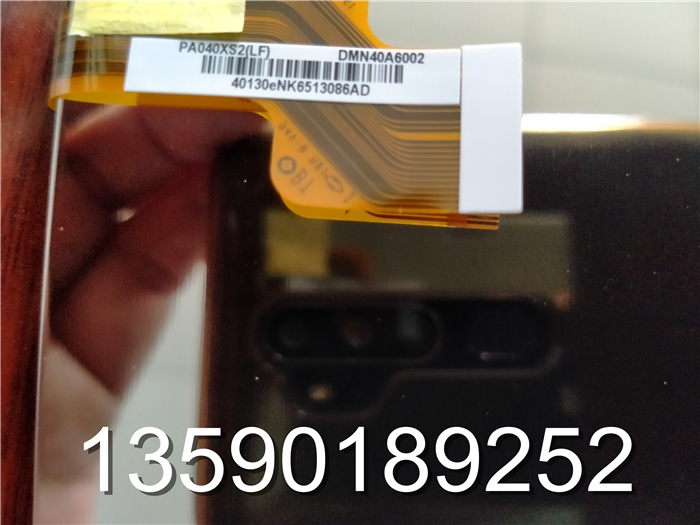

Manufacturer: Yuan Tai (PVI) Model: PA040XS2
Diagonal size: 4.0inch type: a-Si TFT-LCD, LED module
Resolution: 320(RGB)×234 98PPI pixel arrangement: RGB vertical bar
Display area: 81.12(H)×61.78 (V) mm Appearance size:89.52(W)×71.18(H) ×1.87(D) mm
Opening area:----- surface treatment: matte
Display brightness:500 cd/m² (Typ.) Contrast: 350:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock Response time: 15/25 (Typ.)(Tr/Td) ms
Viewing angle:50/50/15/35 (Typ.)(CR≥10) Display mode: TN, normally white display, transmissive
Support color: 262K light source type: 3S8P WLED, 30K hours, no driver
Touch technology: No touch Application products: Industrial and subway gate display
Voltage supply: 3.3V (Typ.)(VCC) Interface type:Parallel RGB (1 ch, 6-bit) , 60 pins , FPC
Operating temperature: -20 ~ 70 °C Storage temperature: -30 ~ 80 °C
